PP2700
Optimal All-in-one Panel PC engineered for performance, durability, and flexibility.
PP2700 is 27-inch Panel PCs combine a sleek, durable design with reliable performance for demanding industrial and commercial applications. Featuring high-quality displays, flexible mounting options, powerful computing capabilities, and extensive I/O connectivity, they provide an efficient all-in-one solution for automation, retail, hospitality, and smart business environments.
PP2700
Optimal All-in-one Panel PC engineered for performance, durability, and flexibility.
PP2700 is 27-inch Panel PCs combine a sleek, durable design with reliable performance for demanding industrial and commercial applications. Featuring high-quality displays, flexible mounting options, powerful computing capabilities, and extensive I/O connectivity, they provide an efficient all-in-one solution for automation, retail, hospitality, and smart business environments.
The best choice for stability and durabilityOne Panel. Endless Possibilities.
Power Meets Precision
Certified with Google Mobile ServicesFull support for Google’s core services & application ecosystem
➤ Support the latest Android 15 version
➤ Multi-system compatibility
➤ Multi-system compatibility
Depending on your use case, MSR / Stand / 2D Scanner Multi-Component SupportChoose the right architecture based on specific operational requirements today
PP2150
Depending on
your use case,
MSR / Stand / 2D Scanner
Multi-Component
Support

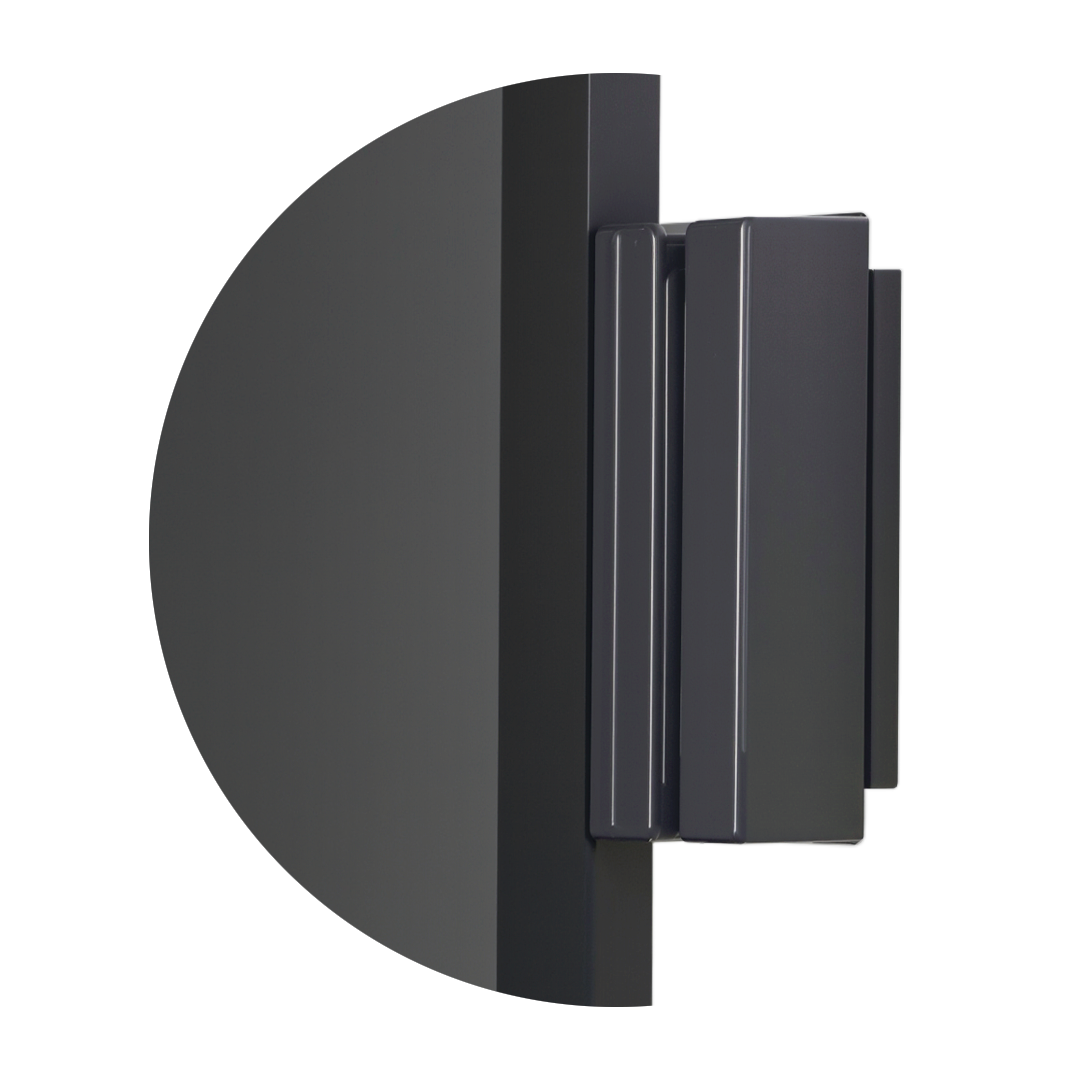

MSR
(Magnetic Stripe Reader)

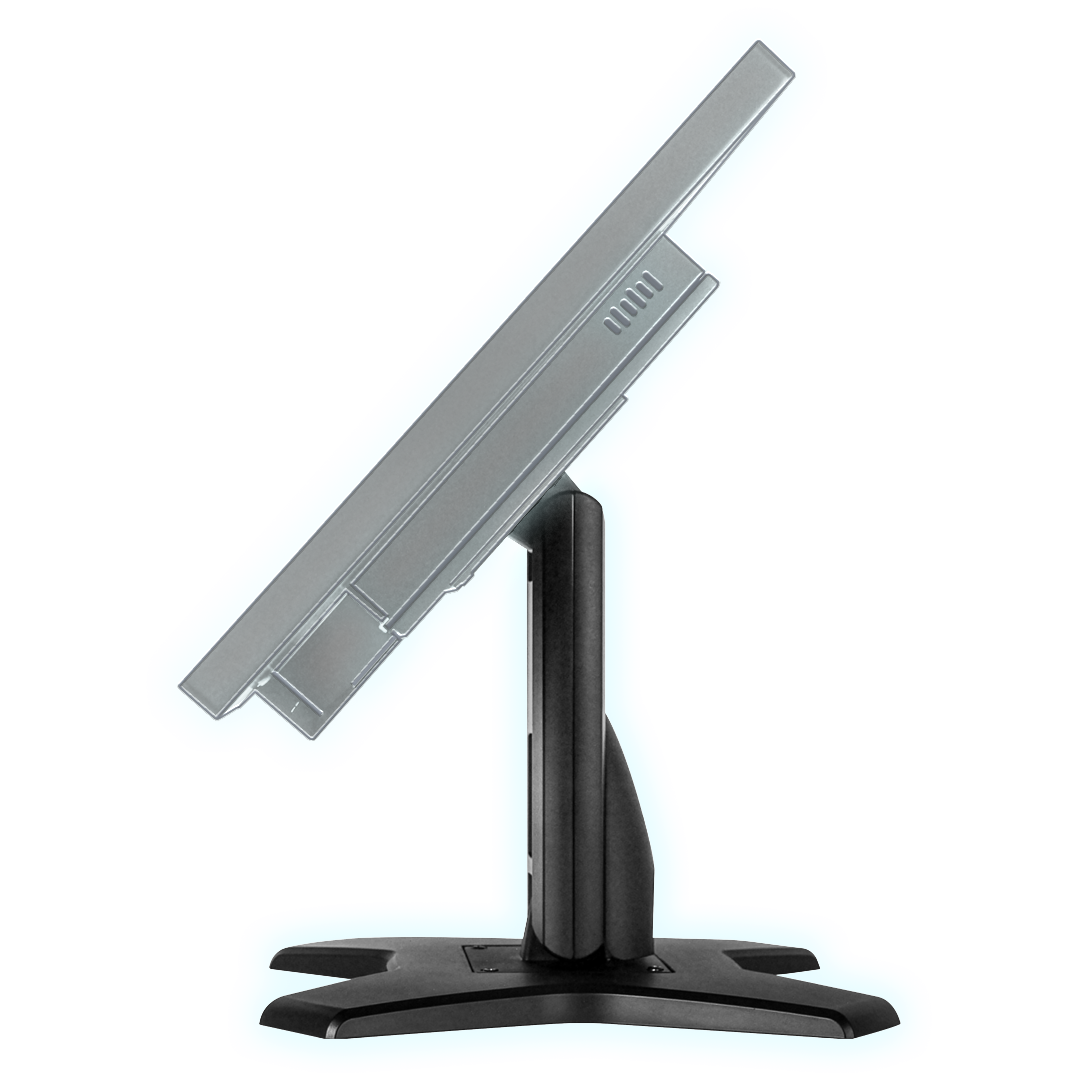

Stand
(Liquid Crystal Display Module)
Monitor
(21.5 inch PCAP Multitouch)

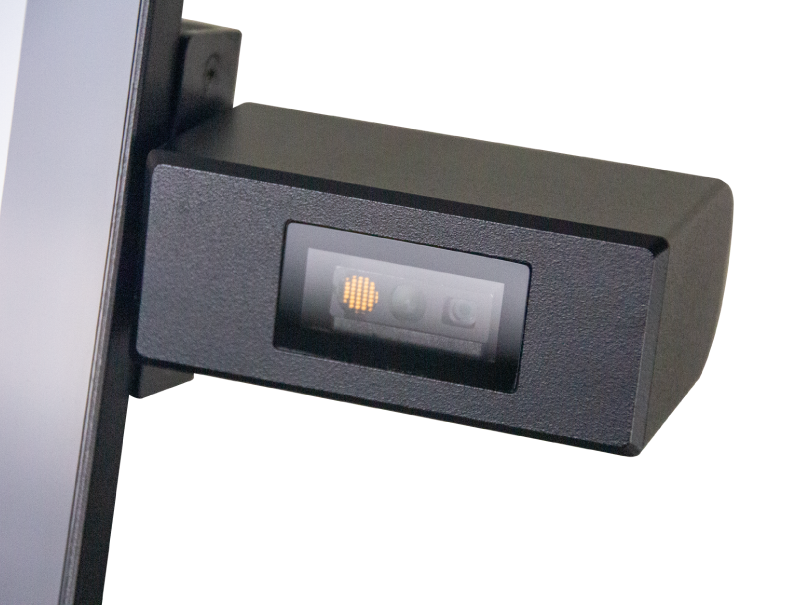

2D Scanner
(QR & Barcode Scanner)
Specification
| PP2700 |
|---|
| CPU | Intel® Twin Lake N150 Processor Intel® Alder Lake N97/N100 Intel® Alder Lake i3-N305 MediaTek Genio700 Octa-core 2x ARM Cortex A78@2.2 GHz, 6x ARM Cortex A55@2.0 GH |
|---|---|
| Memory | 1x 8GB DDR4 up to 16GB (Twin Lake N) 1 x DDR5 SO-DIMM slot , Max up to 32GB – depends on diff. CPU (Alder Lake N) 8G LPDDR4 (Genio700) |
| Storage | 1 x 128GB M.2 2280 NVMe SSD (Twin Lake N) 1 x M.2 2280 or 1x 2280 PCIe , Max up to 1T (Alder Lake N97/i3-N305) 128G (Genio700) |
| Power | 60W (24V/2.5A) external adapter (Twin Lake N) 120W (24V) Standard for Alder Lake N and G700 (※) POE 24V/25W [option] (Genio700) |
| Audio | 2 x 2W Speaker |
| Display | 27″ TFT-LCD , PCAP touch , 350 nits |
| Resolution | — |
| I/O (Twin Lake N) |
1 x 24V DC-IN 1 x COM (RJ45) 4 x USB 3.0 (Type-A) 2 x USB 2.0 (Type-A) 1 x USB (Type-C) 1 x 24V Cash Drawer (RJ11) 1 x Video Port 1 x Giga LAN (RJ45) |
| I/O (Alder Lake N) |
1 x 24V DC-IN (Mini DIN) 1 x Power Button 1 x COM , RI/5V/12V (RJ45) 4 x USB 2.0 (Type-A) 2 x USB 3.0 (Type-A) 1 x USB (Type-C) 1 x 12V/24V Cash Drawer (RJ11) 1 x Video Port 1 x Giga LAN (RJ45) |
| I/O (Genio700) |
1 x 24V DC-IN 1 x Power Button 1 x GigaLAN (RJ45) 1 x 12V/24V Cash Drawer (RJ11) 2 x USB 3.0 (Type-A) 2 x USB 2.0 (Type-A) 1 x COM (RJ45) 1 x USB (Type-C) 1 x Video Port 1 x Micro SD Card (Top) 1 x Nano SIM Card (Bottom) 1 x Recovery Button |
| Dimension | — x — x — mm (W x H x D) |
| Weight | — kgs |
| OS | Windows 10/11 IoT (Twin Lake N) Windows 10 LTSC/Windows 11 LTSC/Linux 22.04/Ubuntu Android 15/Ubuntu (Genio700) |
| Certifications | CE/FCC |
| Environment | Operating : 0°C ~ 40°C , 20% ~ 80% RH Storage : -20°C ~ 60°C , 10% ~ 90% RH |
| Option I/O | SKU 1 : 1 x Power USB 12V + 2x USB 2.0 SKU2 : 1 x Power USB 24V + 2x USB 2.0 WiFi802.11zc, ax/Bluetooth, 5.3LTE 4GPOE ModuleSoftPOS |
※ Limited Power Delivery for Alder Lake-N, refer to the service manual for details.
