PP9600
Optimal All-in-one Panel PC engineered for performance, durability, and flexibility.

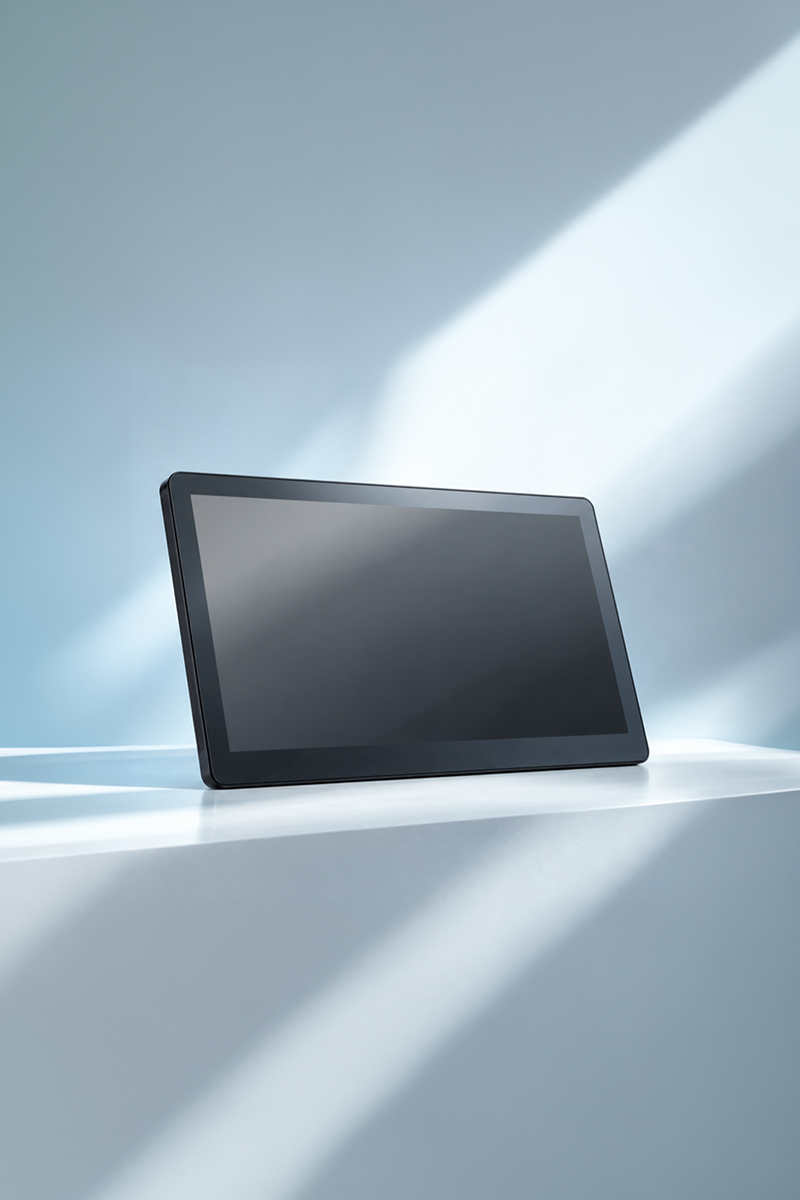

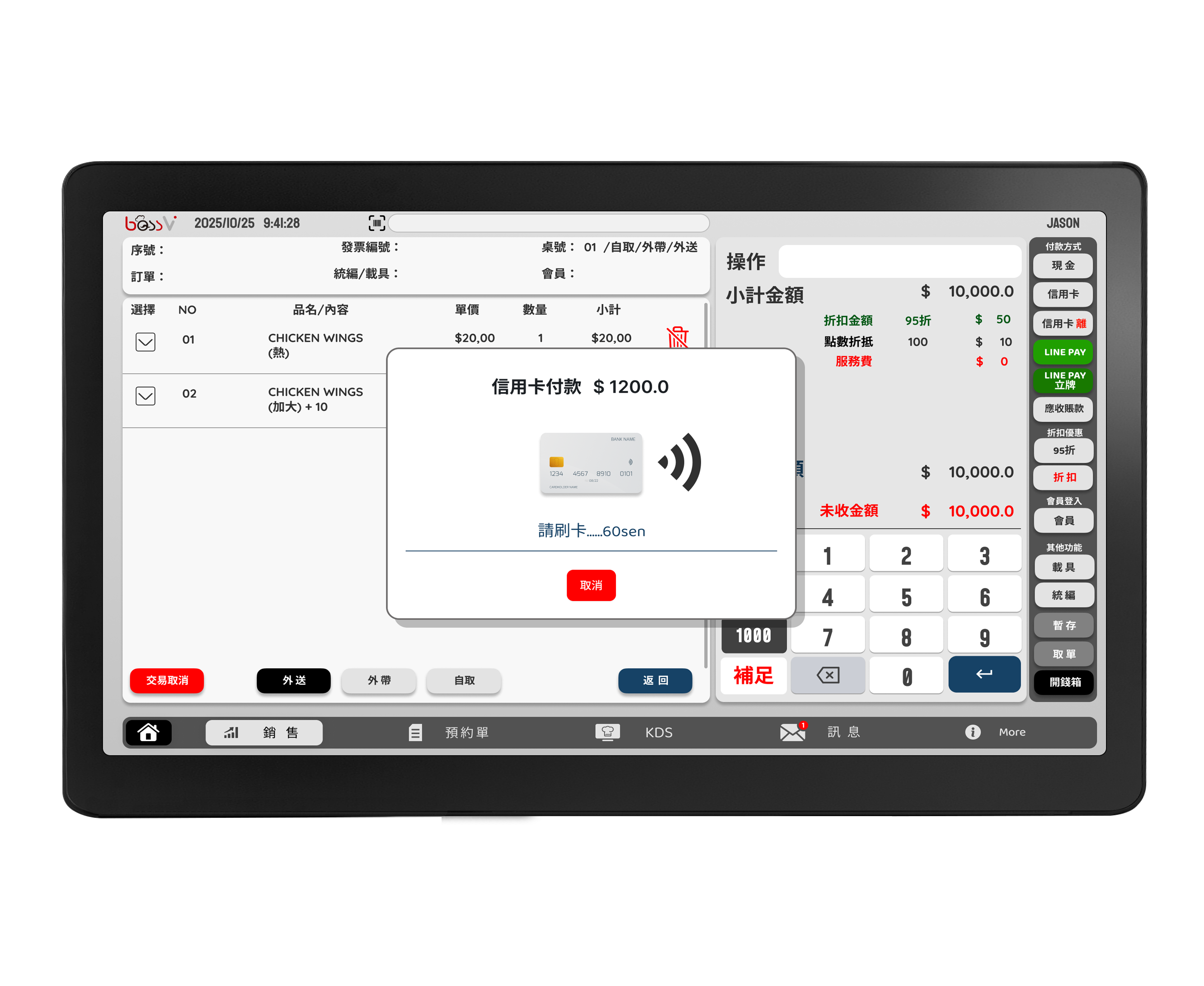

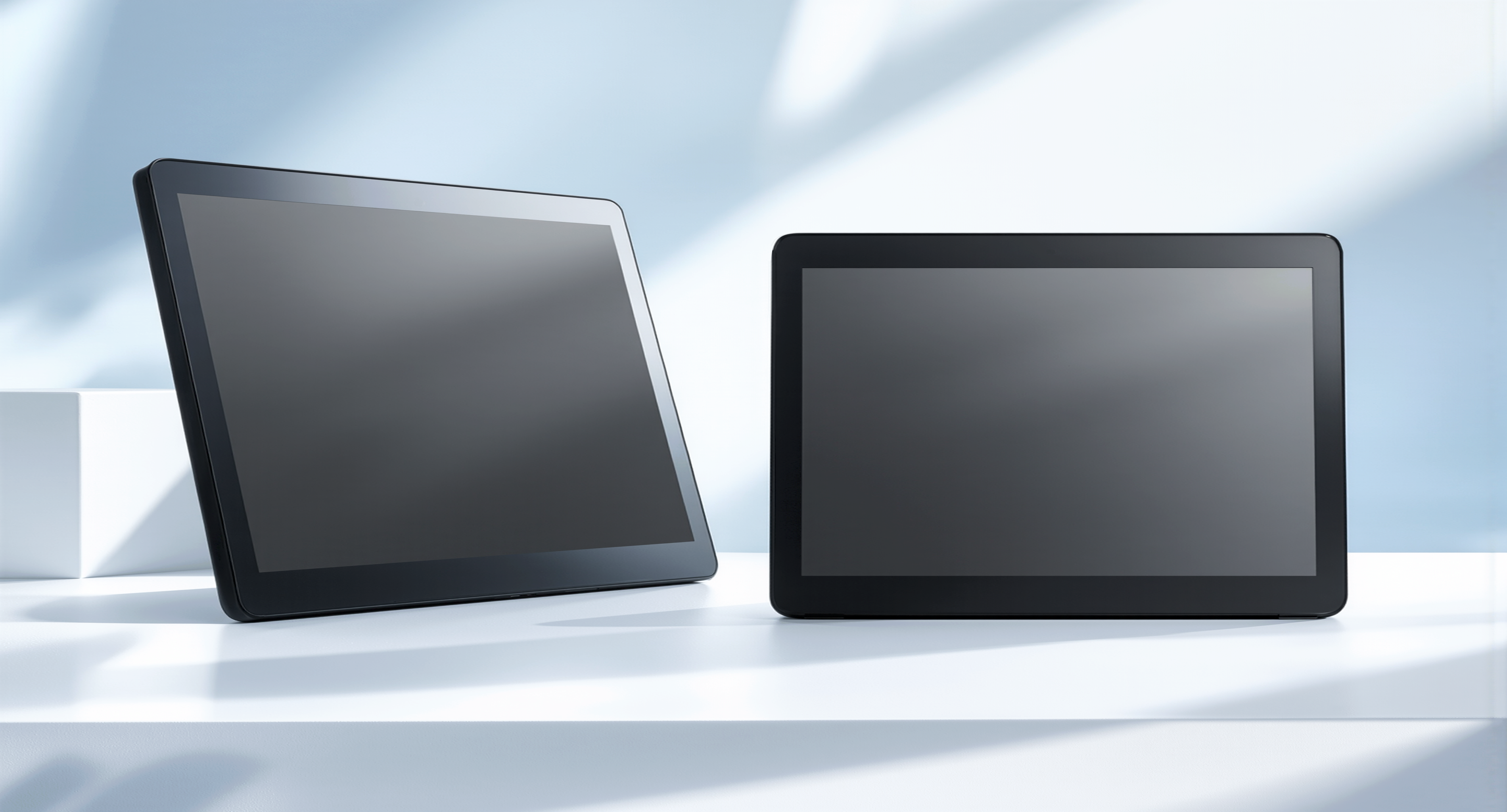

PP9600 is 15.6-inch Panel PCs combine a sleek, durable design with reliable performance for demanding industrial and commercial applications. Featuring high-quality displays, flexible mounting options, powerful computing capabilities, and extensive I/O connectivity, they provide an efficient all-in-one solution for automation, retail, hospitality, and smart business environments.
PP9600
Optimal All-in-one Panel PC engineered for performance, durability, and flexibility.
PP9600 is 15.6-inch Panel PCs combine a sleek, durable design with reliable performance for demanding industrial and commercial applications. Featuring high-quality displays, flexible mounting options, powerful computing capabilities, and extensive I/O connectivity, they provide an efficient all-in-one solution for automation, retail, hospitality, and smart business environments.
The best choice for stability and durabilityOne Panel. Endless Possibilities.
Power Meets Precision
Certified with Google Mobile ServicesFull support for Google’s core services & application ecosystem
➤ Support the latest Android 15 version
➤ Multi-system compatibility
➤ Multi-system compatibility
Specification
| WP9600 |
|---|
| CPU | Intel® Tiger Lake Core™ i3-1115G4 Processor Intel® Tiger Lake Core™ i5-1135G7 Processor Intel® Alder Lake N97/N100 Intel® Alder Lake i3-N305 Quad-core Cortex-A55 RK3568 Processor MediaTek Genio700 Octa-core 2x ARM Cortex A78@2.2 GHz, 6x ARM Cortex A55@2.0 GH |
|---|---|
| Memory | 2 x DDR4 SO-DIMM slot , Max up to 64GB (Tiger Lake i3/i5) 1 x DDR5 SO-DIMM slot , Max up to 32GB – depends on diff. CPU (Alder Lake N) 4G (RK3568) 8G LPDDR4 (Genio700) |
| Storage | 1 x M.2 2242 or 1 x 2280 PCIe , Max up to 512G (Tiger Lake i3/i5) 1 x M.2 2280 or 1x 2280 PCIe , Max up to 1T (Alder Lake N97/i3-N305) 64G eMMC (RK3568) 128G (Genio700) |
| Power | 60W (24V) (※)/ 120W (Option) , POE 24V/25W (for Genio700 & RK 3568) |
| Audio | 2 x 2W Speaker |
| Display | 15.6″ TFT-LCD , FHD (Option) , 400 nits |
| Resolution | 1366 x 768 |
| I/O (Tiger Lake) |
1 x 24V DC-IN (Mini DIN) 1 x Power Button 3 x COM , RI/5V/12V (RJ45) 4 x USB 3.0 (Type-A) 1 x 12V/24V Cash Drawer (RJ11) 1 x Video Port 1 x Giga LAN (RJ45) |
| I/O (Alderlake-N) |
1 x 24V DC-IN (Mini DIN) 1 x Power Button 1 x COM , RI/5V/12V (RJ45) 4 x USB 2.0 (Type-A) 2 x USB 3.0 (Type-A) 1 x USB (Type-C) 1 x 12V/24V Cash Drawer (RJ11) 1 x Video Port 1 x Giga LAN (RJ45) |
| I/O (RK3568) |
1 x 24V DC-IN (Mini DIN) 1 x Power Button 1 x COM , RI/5V/12V (RJ50) 2 x USB 3.0 (Type-A) 2 x USB 2.0 (Type-A) 1 x 12V/24V Cash Drawer (RJ11) 1 x GigaLAN (RJ45) 1 x Micro SD Slot |
| I/O (Genio700) |
1 x 24V DC-IN 1 x Power Button 1 x GigaLAN (RJ45) 1 x 12V/24V Cash Drawer (RJ11) 2 x USB 3.0 (Type-A) 2 x USB 2.0 (Type-A) 1 x COM (RJ45) 1 x USB (Type-C) 1 x Video Port 1 x Micro SD Card (Top) 1 x Nano SIM Card (Bottom) 1 x Recovery Button |
| Dimension | 378 x 240 x 44 mm (W x H x D) |
| Weight | 2.8 kgs |
| OS | Windows 10 LTSC/Windows 11 LTSC/Linux 22.04/Ubuntu Android 13 (RK3568) Android 15/Ubuntu (Genio700) |
| Certifications | CE/FCC |
| Environment | Operating : 0°C ~ 40°C, 20% ~ 80% RH Storage : -20°C ~ 60°C, 10% ~ 90% RH |
| Internal I/O | WiFi802.11zc, ax/Bluetooth 5.3LTE 4GPOE ModuleSoftPO LTE 4G (Genio700 only)S |
※ Limited Power Delivery for Alder Lake-N, refer to the service manual for details.
