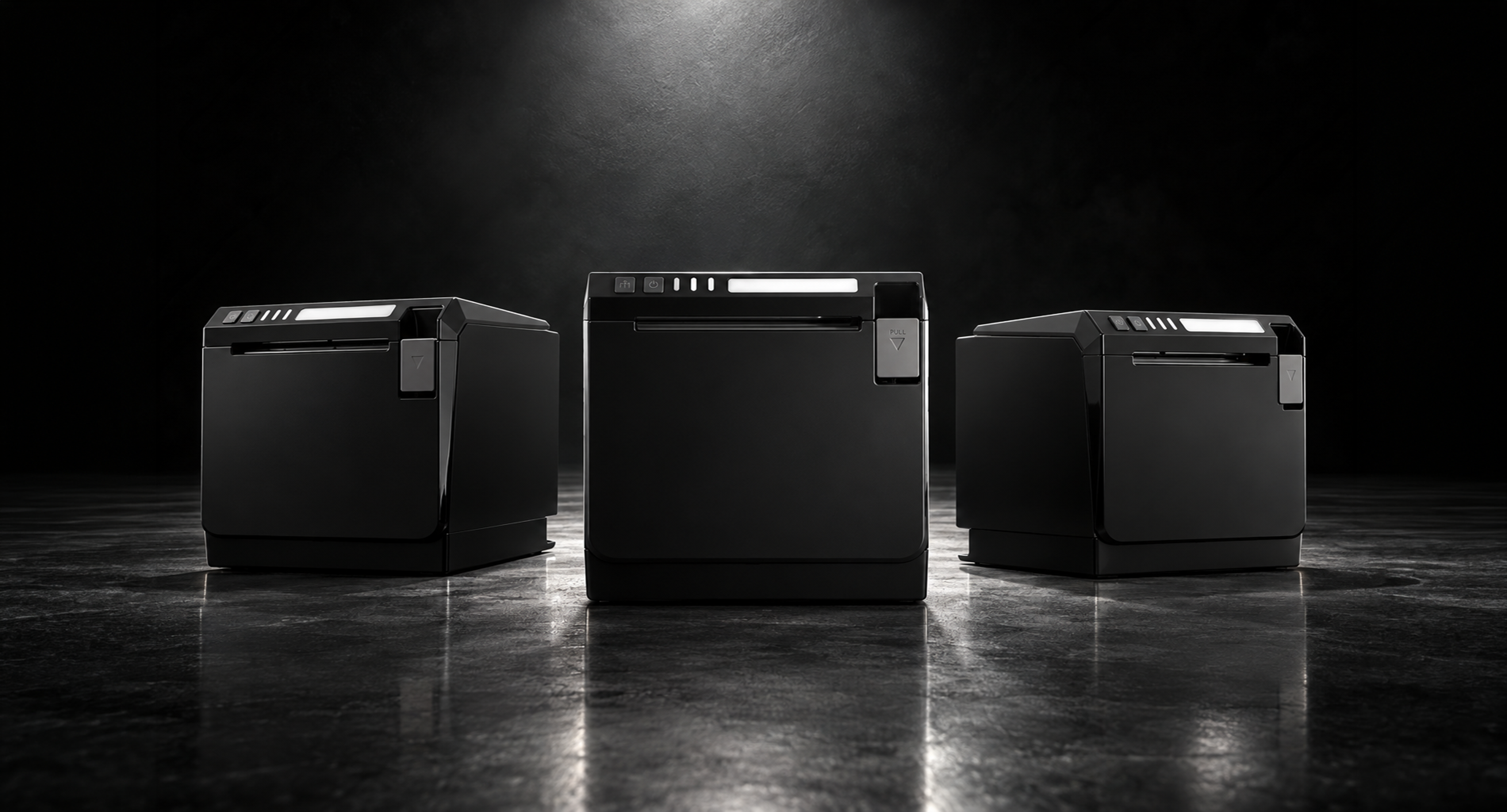

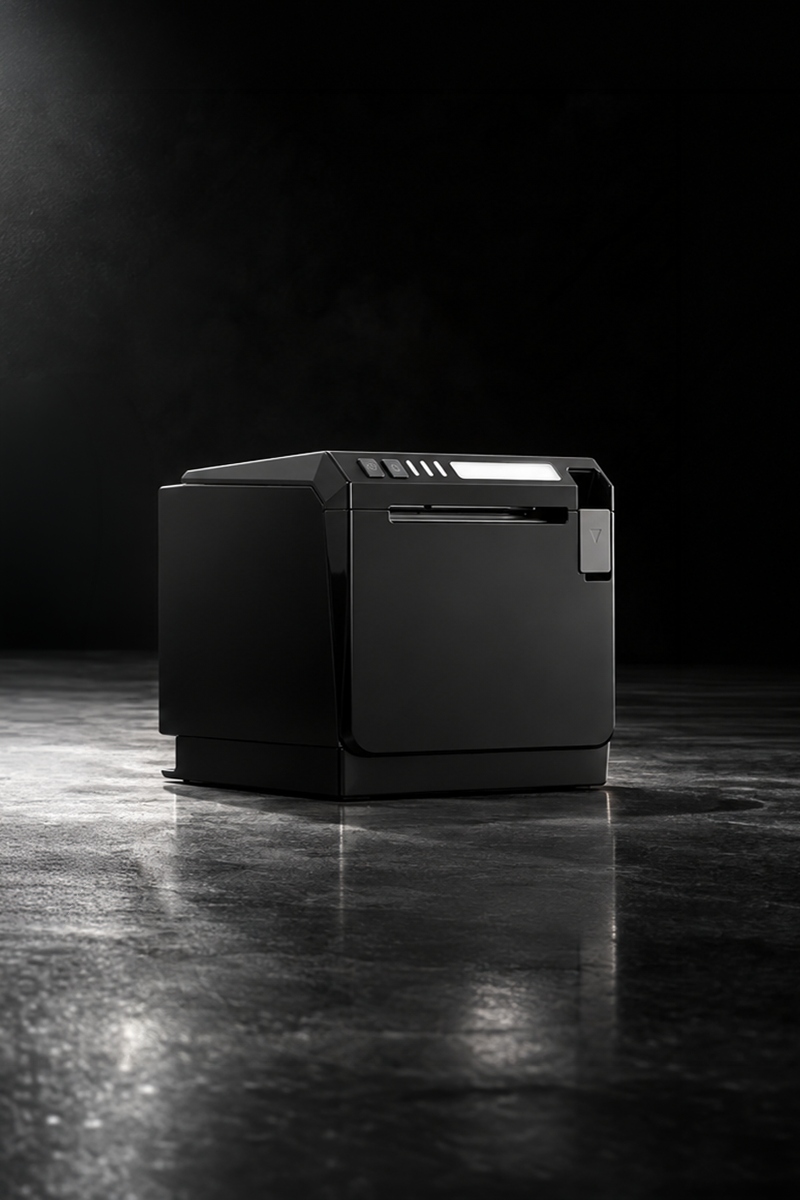

LX300
Compact, fast, and reliable thermal printer for seamless POS operations.
The LX300 is a compact and reliable thermal receipt printer designed for modern POS applications. With fast printing performance, stable operation, and a space-saving design, it delivers clear, professional receipts while seamlessly integrating into retail, restaurant, and hospitality environments.
LX300
Compact, fast, and reliable thermal printer for seamless POS operations.
The LX300 is a compact and reliable thermal receipt printer designed for modern POS applications. With fast printing performance, stable operation, and a space-saving design, it delivers clear, professional receipts while seamlessly integrating into retail, restaurant, and hospitality environments.
Specification
| LX300 |
|---|
| Printing method | Direct thermal |
|---|---|
| Printing speed | 300mm/s |
| Paper width | 58/80/83±0.5mm |
| Paperrolldiameter | Min : 13mm Max : 83mm |
| Column capacity | 576 dots/line or 512 dots/line |
| Interface | USB+Serial+Lan |
| Line spacing | 3.75mm (Adjustable by commands) |
| Column number | 80mm paper : Font A – 42 columns or 48 columns Font B – 56 columns or 64 columns , Simplified/Traditional Chinese – 21 columns or 24 columns |
| Character size | ANK , Font A : 1.5×3.0mm (12×24 dots) Font B : 1.1×2.1mm (9×17 dots) Simplified/Traditional Chinese: 3.0×3.0mm (24×24 dots) |
| Extension character sheet |
PC347(Std.Europe)/Katakana/PC850(Multilingual)/PC860(Portuguese)/PC863(Canadian-French)/PC865(Nordic)/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/PC866(Cyrillic#2)/PC852(Latin2)/(PC858)/lranll/Latvian/Arabic |
| 1D Barcode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | QR CODE/PDF417 |
| Input buffer | 4M |
| Memory | SRAM 200KB(internal), SDRAM 8MB(external) |
| NV Flash | 512KB(internal), 4MB(external) |
| Power adaptor Input | AC100~240V, 50~60Hz |
| Printer Input | DC24V/2.5A |
| Cash drawer | DC24V/1A |
| Weight | 1.05 kgs |
| Dimensions | 136.7 x 132 x 135 mm (W x H x D) |
| Work environment | Temperature (0~45°C) , humidity(10~80%) |
| Storage environment | Temperature (-10~60°C) , humidity(10~90%) |
| Auto cutter | Partial |
| Cutter life | 1.5 million cuts |
| Printer head life | cuts 150Km |
| Emulation | ESC/POS |
| Driver | Windows/J POS/Linux/OPOS/Android/Mac |
| Utility | Windows & Linux test Utility |
| SDK | iOS, Android, Windows |
