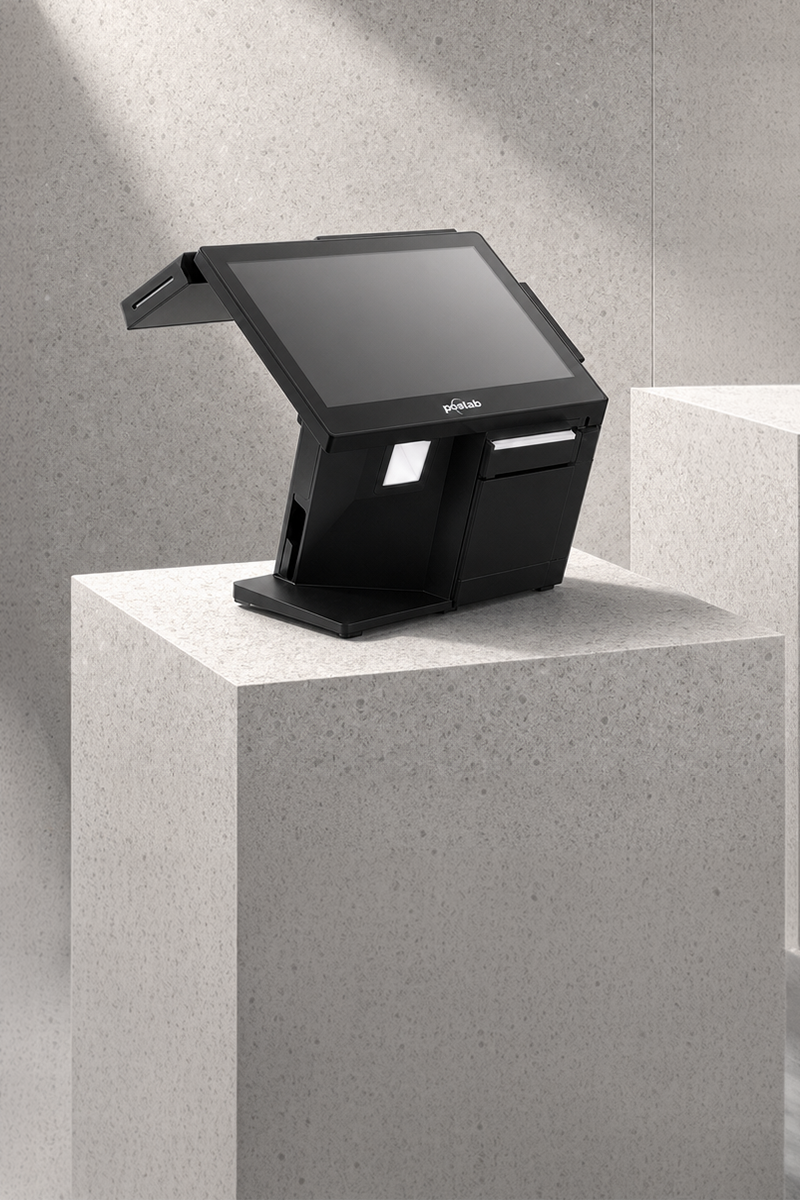

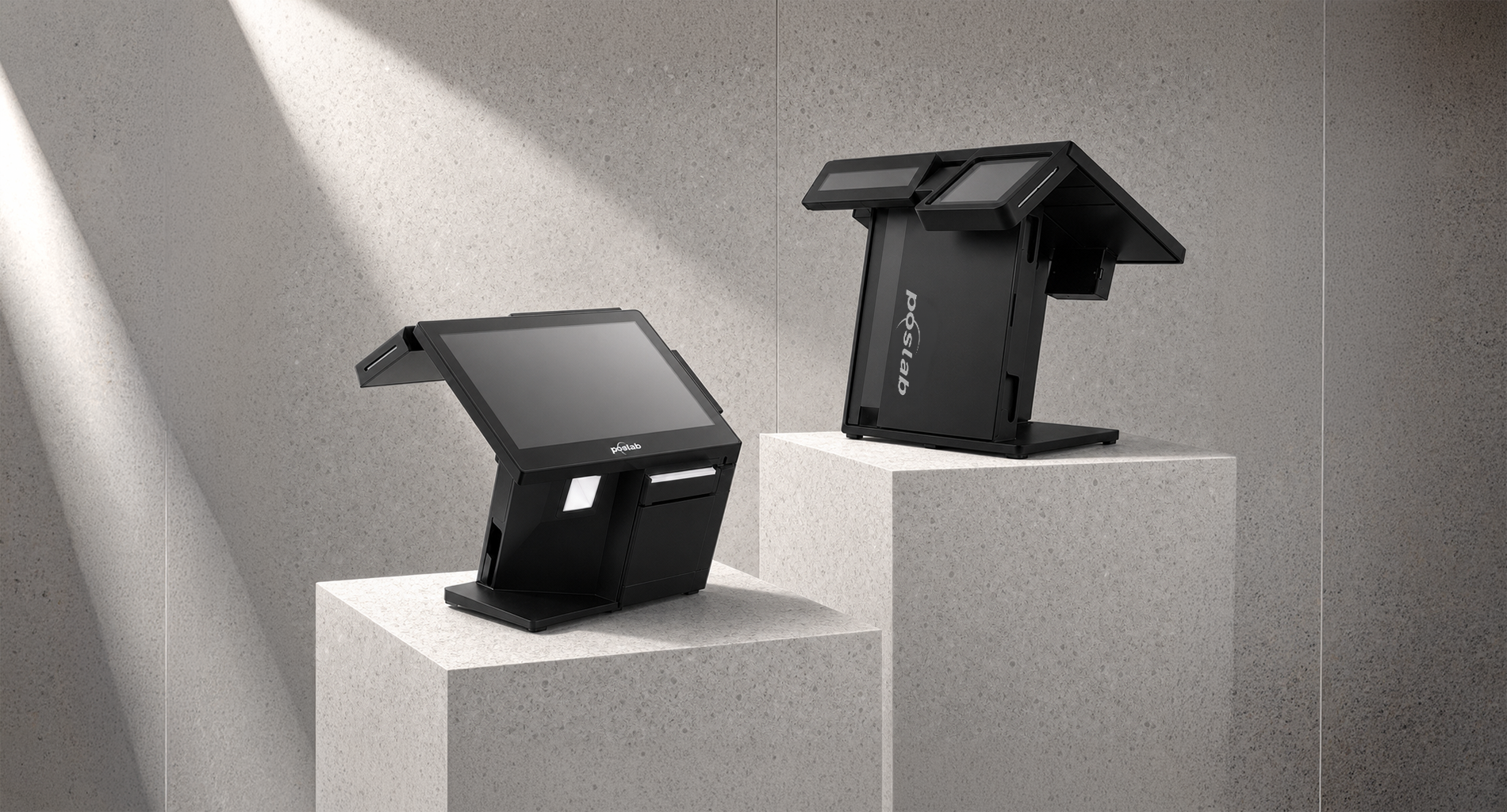

Econano Plus
All-in-one POS system design for speed, reliability, and style.

The Econano Plus is a powerful 11.6-inch desktop POS terminal designed for modern retail and hospitality environments. Powered by the latest Intel® or Android platforms, it delivers reliable performance, flexible connectivity, and versatile peripheral support. Its sleek design, durable construction, and easy integration make daily business operations more efficient.

Econano Plus
All-in-one POS system design for speed, reliability, and style.

MSR

QR Code Scanner

2nd Monitor

Customer Display

Catalog Download

Datasheet Download

Easily integrate checkout & paymentMakes things convenient and easy for you

All-in-one machine

Certified with Google Mobile ServicesFull support for Google’s core services & application ecosystem

➤ Support the latest Android 15 version
➤ Multi-system compatibility

Depending on your use case, MSR / LCM / 2^nd Display Multi-Component SupportChoose the right architecture based on specific operational requirements today

MSR

Econano Plus

LCM

2D Scanner

2nd Display

Depending on
your use case,
MSR / LCM / 2^nd Display
Multi-Component
Support

MSR

(Magnetic Stripe Reader)

LCM

(Liquid Crystal Display Module)

2D Scanner

(QR & Barcode Scanner)

2nd Display

(Dual Screen POS)

Specification

Econano Plus

CPU	Intel® Twin Lake N150 Processor MediaTek Genio700 Octa-core 2x ARM Cortex A78@2.2 GHz, 6x ARM Cortex A55@2.0 GH
Memory	8GB DDR4-3200 MHz, 1× SO-DIMM, up to 16GB (Twin Lake N) 8G LPDDR4 (Genio700)
Storage	128GB / 1TB M.2 2280 NVMe SSD (Twin Lake N) 128G eMMC (Genio700)
Power	60W (24V)
Audio	1x 2W Speaker
Display	11.6” TFT LCD
Resolution	1366 x 768 (HD)
Touch Screen	PCAP Multitouch Screen / 10 Points
I/O (Twin Lake N)	1 x COM (RJ45) 1 x Video Port, 1 x 24V C/D (RJ11) 2 x USB3.0 4 x USB2.0 1 x GigaLAN (RJ45) 1 x USB Type C 1 x 24V DC-IN
I/O (Genio700)	1 x Nano SIM Card (Bottom) 1 x Micro SD Card (Top) 1 x COM (RJ45) 1 x 12V C/D (RJ11) 2 x USB2.0 2 x USB3.0 1 x Video Port 1 x Giga LAN (RJ45) 1 x 12V DC-IN
Dimension	291 x 268 x 179 mm (W x H x D)
Printer	Paper Width : 58/80 mm, Speed : 250 mm/s, Auto Cutter, ESC/POS
Weight	3.4 kgs
OS	Windows 10/11 IoT (Twin Lake N) Android 15 (Genio700)
Certifications	CE/FCC
Environment	Operating : 0˚C ~ 40˚C (32˚F ~ 104˚F) , 20% ~ 80% RH Storage : -20˚C ~ 60˚C (-4˚F ~ 140˚F) , 10% ~ 90% RH

Option

Peripheral	7″ 2nd Display (w/ or w/o touch), LCM, MSR, RFID, iButton, 1D or 2D Scanner, WiFi b/g/n/ac, Payment Card Reader (NFC Module for Softpos / EMV CL L1 )
